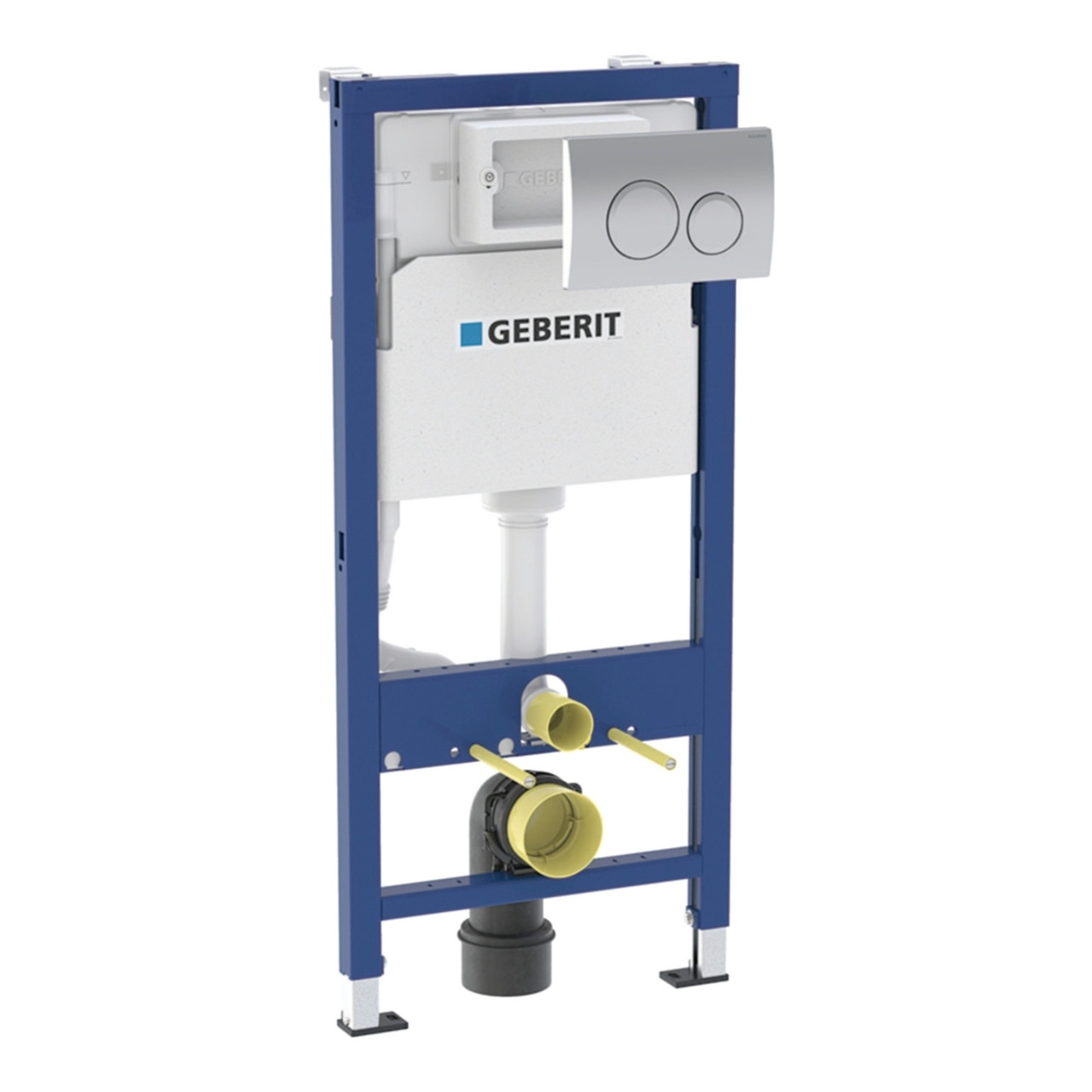

Designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come.

Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

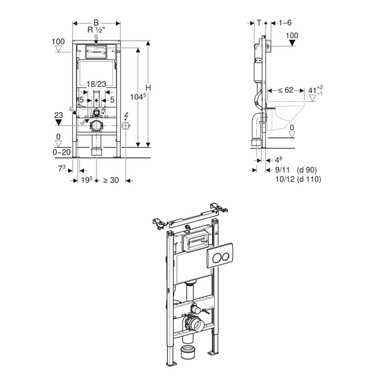

Application Purposes:

- For drywall construction

- For installation in part or room-height prewall installations

- For installation in room-height installation walls

- For wall-hung WCs with connection dimensions in accordance with EN 33:2011

- For wall-hung WCs with projection up to 62cm

- For floor constructions 0?20cm

Characteristics:

- Self-supporting frame, powder-coated

- Frame top open

- Frame with ? 9mm drilling holes for fastening in wood frame construction

- Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open

- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces

- Galvanized feet

- Feet adjustable 0?20cm

- Foot plates made of plastic

- Foot plate depth suitable for installation in U-profiles UW 50

- Connection bend can be mounted without tools

- Concealed cistern with front actuation

- Concealed cistern, fully insulated against condensation

- Cistern fulfils standard requirements in accordance with EN 14055, Class II

- Immediate post flush possible with factory setting

- Water supply connection on the rear or top centre

- With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets

- Fastening option for electrical connection

Technical Data:

- Maximum operating temperature, water 25?C

- Flush volume, factory setting 5.8 and 3l

- Flush volume large, adjustment range 4.5 / 6 / 7.5l

- Flush volume small, adjustment range 3-4l

Whats Included:

- Angle stop valve R 1/2, with adaptor ring

- Protection box for service opening, made of polystyrene foam

- 2 distance bolts

- 2 wall anchors

- Connection set for WC, ? 90mm

- Connection bend 90? made of PE-HD, ? 90mm

- Adaptor socket made of PE-HD, ? 90 / 110mm

- 2 protection plugs

- Cup for flush volume reduction 4.0 / 2.6l

- Crossbar for panelling support

- 2 threaded rods M12

- Fastening material

- Flush plate Delta20
