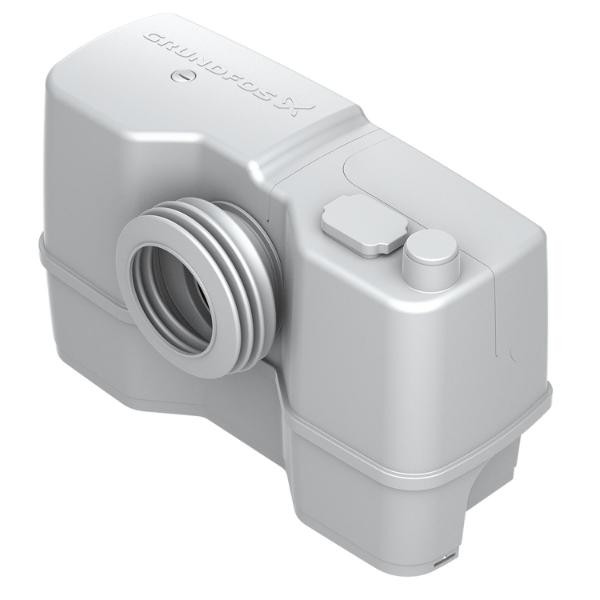

SOLOLIFT2 WC-1 Sololift2 WC-1 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 WC-1 is suitable for pumping wastewater from a toilet containing toilet paper and faeces with an additional connection on the lid for e.g. a washbasin. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. Sololift2 WC-1 is typically used to dewater: ? toilet and washbasin in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established. The compact lifting station is equipped with - Cable with or without plug (see technical data) - Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with ?22-40mm -integrated non return valve - Dry and high performance motor unit incl. thermal protection, pressure switch and controller - DN100 toilet connection hose - Flexible connectors for inlet (adjustable in height) of pipes ?36 or 40 - Slot for an alarm board with buzzer (accessory) - Manual anti clogging function and separate drain connection for service - Venting valve with overflow protection - Uplift fixation clips Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service. Note: The discharge adaptor can be mounted vertical or horizontal. Vertical installation increase the flow (s. databooklet and curves) Liquid: Liquid temperature range: 0 .. 50 ?C Density: 998.2 kg/m3 Technical: Pump speed on which pump data are based: 2800 rpm Rated flow: 1.37 l/s Maximum flow: 2.48 l/s Rated head: 6.21 m Type of impeller: VORTEX with GRINDER Max. Particle: 25 mm Approvals: CE,CHROHS,MORO,UKCA,WATERMARK Curve tolerance: ISO9906:2012 3B Materials: Pump housing: Composite Impeller: Polymer - PPE Tank: Plastic Tank: PP Installation: Range of ambient temperature: 0 .. 40 ?C Type of inlet connection: Smooth pipe Type of outlet connection: Smooth pipe Size of inlet connection: 32/36/40, DN 100 Size of outlet connection: 22/25/28/32/36/40 Pressure rating for connection: PN 1,5 Number of leads: 3X0,75MM2 Electrical data: Power input P1: 620 W Rated power - P2: 0.42 kW Mains frequency: 50 Hz Rated voltage: 1 x 220-240 V Rated current: 3 A Cos phi - power factor: 0.92 Number of poles: 2 Enclosure class (IEC 34-5): IP44 Insulation class (IEC 85): F Power cable type: H05VV-F-3G Length of power cable: 1.2 m Power plug: without Tank: Tank volume nominal: 9 l Others: Net weight: 7.8 kg Gross weight: 9.55 kg Shipping volume: 0.052 m3 Country of origin: RS Custom tariff no.: 84137021 Environmental approvals: WEEE
