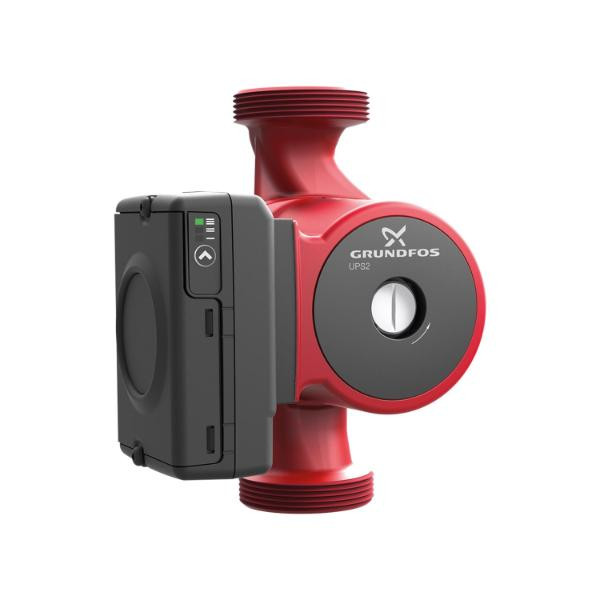

UPS2 32-80 180 is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) fit for the ErP directive No 641/2009 due to continuously variable speed control for circulation of clean heating water according to VDI 2035. Features and benefits: UPS2 32-80 180 High-efficiency circulator pump with permanent-magnet motor (ECM technology) complying with the ErP directive No 641/2009 thanks to continuously variable speed control. Suitable for circulation of clean heating water according to VDI 2035.

Features and benefits:

? Complying with requirements of the ErP directive as from 2015.

? 1 pump replaces 3 variants.

? It is available as pump head without pump housing. Fits on all 4-m, 5-m and 6-m pump housings of the Series 100.

? For tight installations, i.e. in boiler applications.

? High energy savings thanks to an energy efficiency index (EEI) lower than 0.23.

? One button for simple selection among three proportional-pressure curves or three fixed speeds.

? No corrosion issues thanks to the electrocoated pump housing.

? Reduced installation costs as no external motor protection is required.

Liquid: Pumped liquid:

Water Liquid temperature range: 2 ..95 ?C Selected liquid temperature: 60 ?C Density: 983.2 kg/m3 Technical: Rated flow: 3.81 m3/h Rated head: 6.84 m TF class: 95 Approvals: CE,WEEE,UKCA Materials: Pump housing: Cast iron Pump housing: EN 1561 EN-GJL-150 Pump housing: ASTM A48-25B Impeller: Composite Impeller: PES 30% GF + PESU-GF20% Installation: Range of ambient temperature: 0 .. 40 ?C Maximum operating pressure: 10 bar Type of connection: G Size of connection: 2 inch Pressure rating for connection: PN 10 Port-to-port length: 180 mm Electrical data: Power input P1: 140 W Mains frequency: 50 / 60 Hz Rated voltage: 1 x 230 V Maximum current consumption: 1.1 A minimum current consumption: 0.1 A Enclosure class (IEC 34-5): X2D Insulation class (IEC 85): F Built-in motor protection: NONE
